Product Summary

Case: Molded plastic body over passivated junctions
Terminals: Plated leads solderable per MIL-STD-750,
Method 2026
Mounting Position: Any
Weight: 0.06 ounce, 1.7 grams

Features

Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
? This series is UL listed under the Recognized Component
Index, file number E54214
? Glass passivated chip junctions
? Typical IR less than 0.1μA
? High case dielectric strength
? Ideal for printed circuit boards
? High temperature soldering guaranteed:
260°C/10 seconds at 5 lbs. (2.3kg)

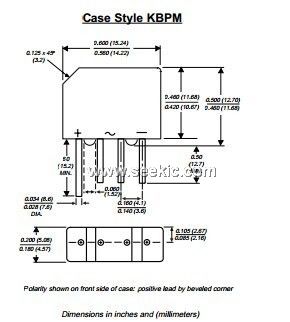

Diagrams


Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2KBP06M
2KBP06M
Fairchild Semiconductor
Bridge Rectifiers 600V 2A BRIDGE
Data Sheet
0-1: $0.42
1-25: $0.28
25-100: $0.24
100-250: $0.22
2KBP06M/1
2KBP06M/1
Vishay Semiconductors
Bridge Rectifiers 2.0 Amp 600 Volt
Data Sheet
Negotiable
2KBP06M-E4/51
2KBP06M-E4/51
Vishay Semiconductors
Bridge Rectifiers 2.0 Amp 600 Volt
Data Sheet
0-1: $0.42
1-50: $0.34
50-100: $0.27
100-500: $0.24
2KBP06M-E4/45
2KBP06M-E4/45
Vishay Semiconductors
Bridge Rectifiers 2.0 Amp 600 Volt
Data Sheet
0-1: $0.35
1-10: $0.31
10-100: $0.23
100-250: $0.20
2KBP06M_Q
2KBP06M_Q
Fairchild Semiconductor
Bridge Rectifiers 600V 2A BRIDGE
Data Sheet
Negotiable
