Product Summary

The AD648 is a matched pair of low power, precision monolithic operational amplifiers. It offers both low bias current
(10 pA max, warmed up) and low quiescent current (400 μA
max) and is fabricated with ion-implanted FET and laser wafer
trimming technologies. Input bias current is guaranteed over the
AD648’s entire common-mode voltage range.

Features

FEATURES
DC Performance
400 mA max Quiescent Current
10 pA max Bias Current, Warmed Up (AD648C)
300 mV max Offset Voltage (AD648C)
3 mV/8C max Drift (AD648C)
2 mV p-p Noise, 0.1 Hz to 10 Hz
AC Performance
1.8 V/ms Slew Rate
1 MHz Unity Gain Bandwidth

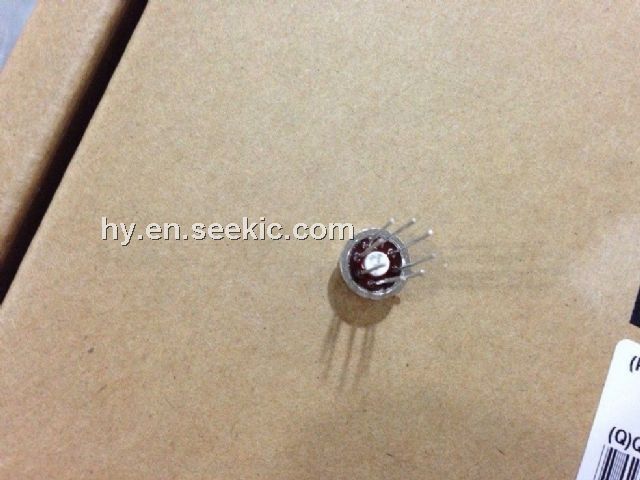

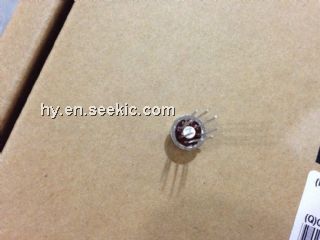

Available in Plastic Mini-DIP, Cerdip, Plastic SOIC
and Hermetic Metal Can Packages
MIL-STD-883B Parts Available
Surface Mount (SOIC) Package Available in Tape and
Reel in Accordance with EIA-481A Standard
Single Version: AD548
