Product Summary
Resolution 12-bit plus sign
j 12-bit plus sign conversion time
– ADC12H30 family 5.5 μs (max)
– ADC12030 family 8.8 μs (max)
j 12-bit plus sign throughput time
– ADC12H30 family 8.6 μs (max)
– ADC12030 family 14 μs (max)
j Integral linearity error ±1 LSB (max)
j single supply 5V ±10%
j Power consumption 33 mW (max)
– Power down 100 μW (typ)
Features
n Serial I/O (MICROWIRE Compatible)
n 2, 4, or 8 channel differential or single-ended multiplexer
n Analog input sample/hold function
n Power down mode
n Variable resolution and conversion rate
n Programmable acquisition time
n Variable digital output word length and format
n No zero or full scale adjustment required
n Fully tested and guaranteed with a 4.096V reference
n 0V to 5V analog input range with single 5V power
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

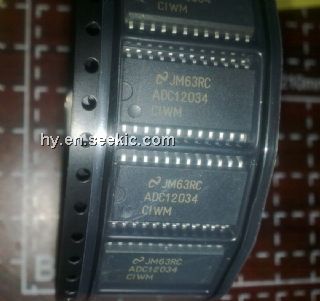

 ADC12034CIWM/NOPB |
|
IC ADC 12BIT SRL I/O MUX 24-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
