Product Summary
The P89V51RD2 is an 80C51 microcontroller with 64 kB Flash and 1024 bytes of
data RAM.
Parametrics
Brown-out detection
n Low power modes
u Power-down mode with external interrupt wake-up
u Idle mode
n PDIP40, PLCC44 and TQFP44 packages
Features
80C51 Central Processing Unit
n 5 V Operating voltage from 0 to 40 MHz
n 64 kB of on-chip Flash program memory with ISP (In-System Programming) and
IAP (In-Application Programming)
n Supports 12-clock (default) or 6-clock mode selection via software or ISP
n SPI (Serial Peripheral Interface) and enhanced UART
n PCA (Programmable Counter Array) with PWM and Capture/Compare functions
n Four 8-bit I/O ports with three high-current Port 1 pins (16 mA each)
n Three 16-bit timers/counters
n Programmable Watchdog timer (WDT)
n Eight interrupt sources with four priority levels
n Second DPTR register
n Low EMI mode (ALE inhibit)
n TTL- and CMOS-compatible logic levels

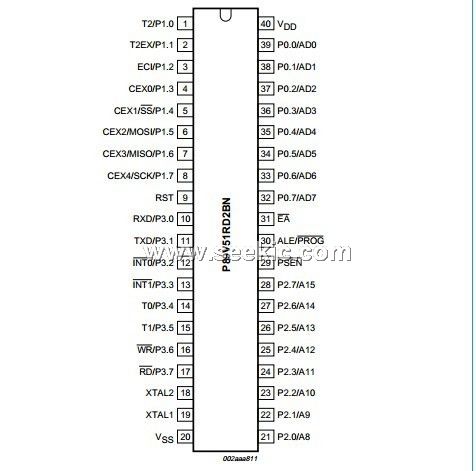

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

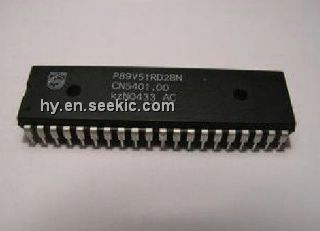

 P89V51RD2BN |
NXP Semiconductors (founded by Philips) |
IC 80C51 MCU 64K FLASH 40-DIP |
Data Sheet |
Negotiable |
|
||||
 |
P89V51RD2BN,112 |
NXP Semiconductors |
8-bit Microcontrollers (MCU) 80C51 5V 16/32/64KB FLASH MCU 1 KB RAM |
Data Sheet |
Negotiable |
|
||||
