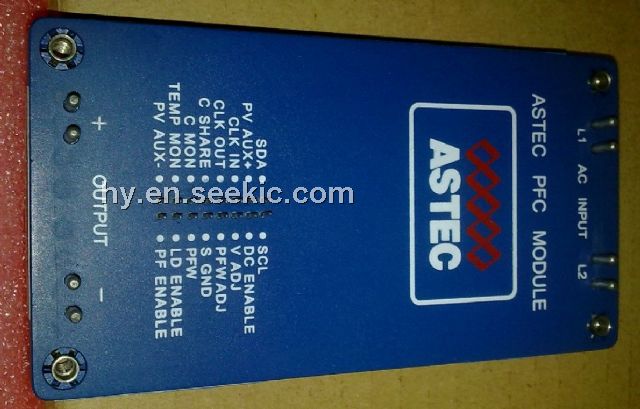

Product Summary
? Unity power factor
? High efficiency - up to 95%
? Universal input voltage and frequency range
? Up to 1600W output power
? Positive and Negative enable function
? Parallelable with accurate current sharing
? <10% harmonic distortion conforming to
IEC1000-3-2 Compliance
? 100°C baseplate operating temperature
Input
Input range 85 - 264VAC / 120 - 370VDC
(Configurable)
Input Surge 290VAC / 1s
Input Frequency 50/60 Hz
Efficiency 95% @230Vac, 1600W (Typ)
Total Harmonic Distortion Less than 10%
Power Factor 0.99 typical (Po 3 500W);
0.97 typical (Po 3 1000W)
Control
Power Fail Warning Direct drive output to opto-isolator
Power Fail Warning Adjust 195 to 355Vdc adjustable
LD Enable Direct drive output to opto-isolator
PFC Enable TTL compatiable (Pos and Neg)
Voltage Adjust 76% to 100% Vo
DC Input Enable
Clock Input (external sync)6Vp-p typical @ 1MHz ± 5%
Clock Output (int. clock) 6Vp-p typical @ 1MHz ± 5%
Temperature
Monitor Output 10mV/°C
Current Monitor Output 0 to 1mA (1mA = 4.2A output)
I2C Interface
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AIF04ZPFC-01L |
Emerson / Astec Power |
DC/DC Converters 1600W 380V out Pos .6" X 2.4" X 0.5" H |
Data Sheet |
|
|
||||||||||||
 |
AIF04ZPFC-01N |
Emerson / Astec Power |
DC/DC Converters 380V 1600W 24-Pin |
Data Sheet |
|
|
||||||||||||
|
AIF04ZPFC-01NTL |
Emerson / Astec Power |
DC/DC Converters 1600W 380V out, Pos 4.6x2.4x.5H Non-Thrd |
Data Sheet |
|
|
||||||||||||
|
AIF04ZPFC-01NL |
Emerson / Astec Power |
DC/DC Converters 1600W 380V out Neg 4.6" X 2.4" X 0.5" H |
Data Sheet |
|
|
||||||||||||
|
AIF04ZPFC-01NNT |
Emerson / Astec Power |
DC/DC Converters 380V 1600W 24-Pin |
Data Sheet |
|
|
||||||||||||
|
AIF04ZPFC-01NNTL |
Emerson / Astec Power |
DC/DC Converters 1600W 380V out Neg 4.6x2.4x.5H Non-Thrd |
Data Sheet |
|
|
||||||||||||
