Product Summary
The M27C801 is an 8 Mbit EPROM offered in the
two ranges UV (ultra violet erase) and OTP (one
time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is
organized as 1,048,576 by 8 bits.

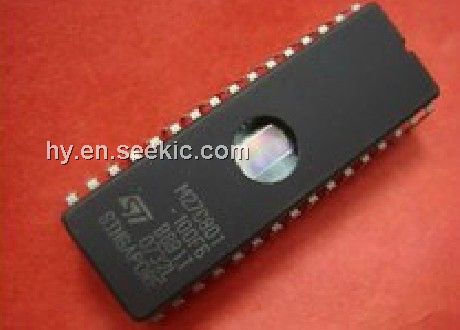

The FDIP32W (window ceramic frit-seal package)
has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the
device by following the programming procedure.
For applications where the content is programmed
only one time and erasure is not required, the
M27C801 is offered in PDIP32, PLCC32 and
TSOP32 (8 x 20 mm) packages
Features
n 5V ± 10% SUPPLY VOLTAGE in READ
OPERATION
n ACCESS TIME: 45ns
n LOW POWER CONSUMPTION:
– Active Current 35mA at 5MHz
– Standby Current 100μA
n PROGRAMMING VOLTAGE: 12.75V ± 0.25V
n PROGRAMMING TIME: 50μs/word
n ELECTRONIC SIGNATURE
– Manufacturer Code: 20h
– Device Code: 42h
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C801-100F1 |
STMicroelectronics |
EPROM 8M (1Mx8) 100ns |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
M27C1001-10B1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10C1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10C6 |
STMicroelectronics |
EPROM OTP 1Mx8 |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-10F1 |
STMicroelectronics |
EPROM 1M (128Kx8) 100ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-12B1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
|
M27C1001-12C1 |
STMicroelectronics |
EPROM 1M (128Kx8) 120ns |
Data Sheet |
Negotiable |
|
||||
