Product Summary

The PCA9535 is a 24-pin CMOS device that provide 16 bits of
General Purpose parallel Input/Output (GPIO) expansion for I
2
C/SMBus applications and was developed to enhance the Philips
family of I
2
C I/O expanders. The improvements include higher drive
capability, 5 V I/O tolerance, lower supply current, individual I/O
configuration, and smaller packaging. I/O expanders provide a
simple solution when additional I/O is needed for ACPI power
switches, sensors, pushbuttons, LEDs, fans, etc.

Features

? Operating power supply voltage range of 2.3 V-5.5 V
? 5 V tolerant I/Os
? Polarity inversion register
? Active LOW interrupt output
? Low stand-by current
? Noise filter on SCL/SDA inputs
? No glitch on power-up
? Internal power-on reset
? 16 I/O pins which default to 16 inputs
? 0 to 400 kHz clock frequency
? ESD protection exceeds 2000 V HBM per JESD22-A114, 200 V
MM per JESD22-A115, and 1000 V CDM per JESD22-C101
? Latch-up testing is done to JESDEC Standard JESD78 which
exceeds 100 mA
? Offered in three different packages: SO24, TSSOP24, and
HVQFN24

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

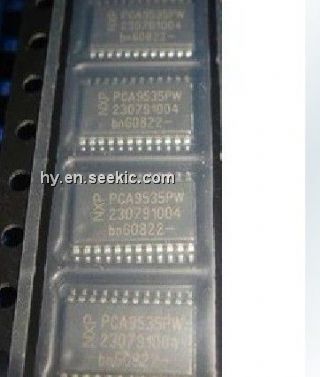

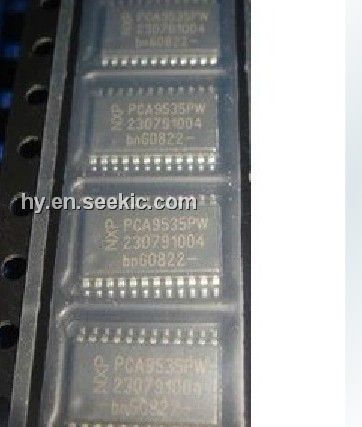

PCA9535PW
PCA9535PW
NXP Semiconductors
I2C Interface IC I2C/SMBUS 16BIT GPIO
Data Sheet
0-1: $2.29
1-25: $1.84
25-100: $1.67
100-250: $1.51
PCA9535PW,112
PCA9535PW,112
NXP Semiconductors
I2C Interface IC I2C/SMBUS 16BIT GPIO
Data Sheet
0-1: $1.09
1-25: $0.88
25-100: $0.74
100-250: $0.66
PCA9535PW,118
PCA9535PW,118
NXP Semiconductors
I/O Expanders, Repeaters & Hubs 16-BIT I2C FM TP GPIO INT
Data Sheet
0-1: $0.90
1-25: $0.79
25-100: $0.65
100-250: $0.62
PCA9535PWR
PCA9535PWR
Texas Instruments
I/O Expanders, Repeaters & Hubs 16-Bit I2C & SMBus Lo-Pwr I/O Expander
Data Sheet
0-1: $1.93
1-25: $1.55
25-100: $1.42
100-250: $1.28
PCA9535PWG4
PCA9535PWG4
Texas Instruments
I/O Expanders, Repeaters & Hubs Rem 16B I2C & SMBus Low-Pwr I/O Exp
Data Sheet
0-1: $2.04
1-25: $1.67
25-100: $1.51
100-250: $1.39
PCA9535PWE4
PCA9535PWE4
Texas Instruments
I/O Expanders, Repeaters & Hubs 16-Bit I2C & SMBus Lo-Pwr I/O Expander
Data Sheet
0-1: $2.04
1-25: $1.67
25-100: $1.51
100-250: $1.39
PCA9535PWRG4
PCA9535PWRG4
Texas Instruments
I/O Expanders, Repeaters & Hubs Rem 16B I2C & SMBus Low-Pwr I/O Exp
Data Sheet
0-1490: $0.93
1490-2000: $0.90
2000-5000: $0.86
PCA9535PWRE4
PCA9535PWRE4
Texas Instruments
I/O Expanders, Repeaters & Hubs 16-Bit I2C & SMBus Lo-Pwr I/O Expander
Data Sheet
0-1490: $0.93
1490-2000: $0.90
2000-5000: $0.86
