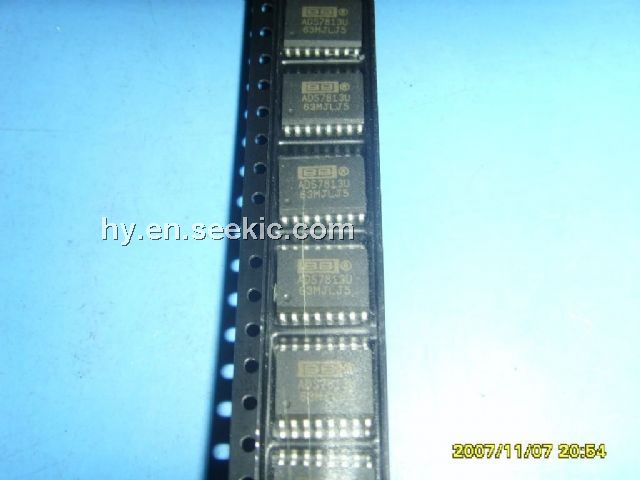

Product Summary
The ADS7813 is a low-power, single +5V supply, 16-
bit sampling analog-to-digital converter. It contains a
complete 16-bit capacitor-based SAR A/D with a
sample/hold, clock, reference, and serial data interface.
The converter can be configured for a variety of input
ranges including ±10V, ±5V, 0V to 10V, and 0.5V to
4.5V. A high impedance 0.3V to 2.8V input range is
also available (input impedance > 10MΩ). For most
input ranges, the input voltage can swing to +16.5V or
–16.5V without damage to the converter.
A flexible SPI compatible serial interface allows data
to be synchronized to an internal or external clock.
The ADS7813 is specified at a 40kHz sampling rate
over the –40°C to +85°C temperature range. It is
available in a 16-pin 0.3" plastic DIP or a 16-lead
SOIC package.
Features
20μs max CONVERSION TIME
l SINGLE +5V SUPPLY OPERATION
l PIN-COMPATIBLE WITH 12-BIT ADS7812
l EASY-TO-USE SERIAL INTERFACE
l 16-PIN 0.3" PLASTIC DIP AND SOIC
l ±2.0LSB max INL
l 87dB min SINAD
l USES INTERNAL OR EXTERNAL
REFERENCE
l MULTIPLE INPUT RANGES
l 35mW max POWER DISSIPATION
l NO MISSING CODES
l 50μW POWER DOWN MODE
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS7813U |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7813U/1K |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7813UB |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7813U/1KE4 |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7813UB/1K |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7813U/1KG4 |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7813UBE4 |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
|
ADS7813UBG4 |
Texas Instruments |
ADC (A/D Converters) Low-Power Serial 16-Bit Sampling |
Data Sheet |
|
|
||||||||||||
